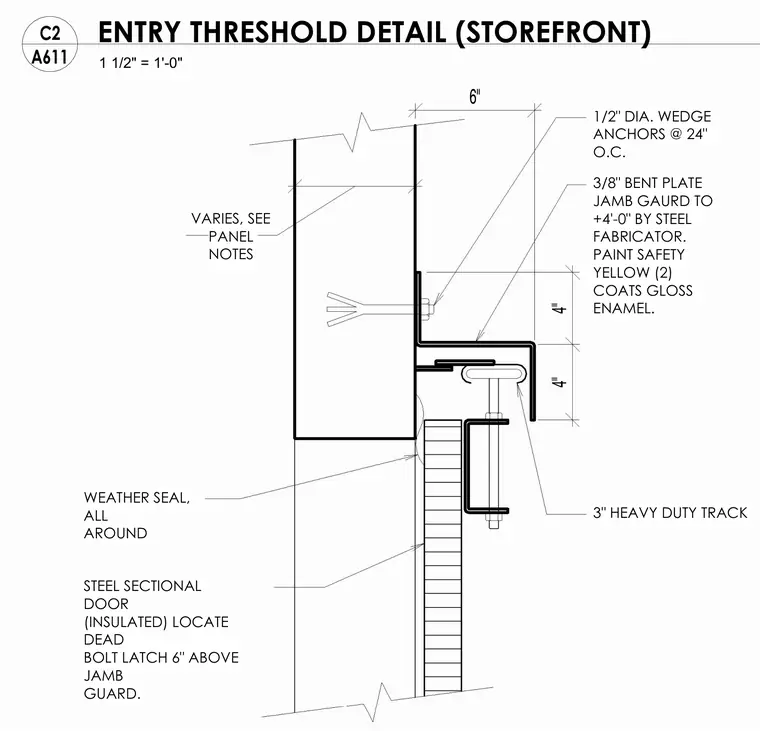

An insulated three-inch heavy-duty track steel sectional door is mounted at the entry threshold alongside a three-eighths-inch bent plate jamb guard extending to plus four feet zero inches. The bent plate jamb guard is secured with one-half-inch diameter wedge anchors spaced at twenty-four inches on center and finished with two coats of safety yellow gloss enamel paint. A weather seal runs all around the perimeter of the assembly. A dead bolt latch is located six inches above the jamb guard.
VARIES, SEE PANEL NOTES 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND 1 1/2" = 1'-0" A611 C2 ENTRY THRESHOLD DETAIL (STOREFRONT)
