Window Head and Sill Flashing with Light Pocket Detail

Materials

Elements

Waterproofing / Flashing Drainage Millwork / Casework Reinforcing

About this detail

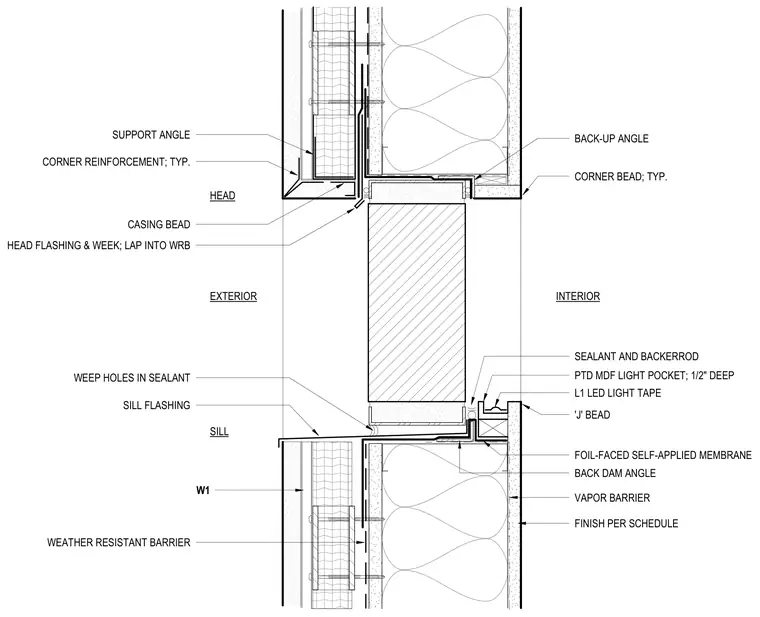

The head detail incorporates a support angle, casing bead, and head flashing that laps into the weather-resistant barrier, finished with corner reinforcement and corner beads. The sill assembly features a sill flashing with weep holes in the sealant, a back dam angle, a foil-faced self-applied membrane vapor barrier, and a weather-resistant barrier. On the interior side, a painted medium-density fiberboard light pocket houses L1 LED light tape, detailed with a J bead, sealant, and backer rod.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
