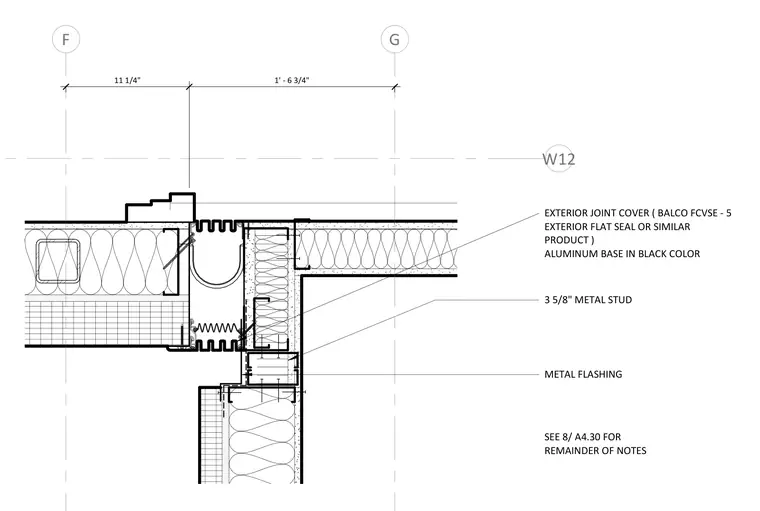

An exterior joint cover assembly incorporates a Balco FCVSE-5 exterior flat seal or similar product with an aluminum base in a black color. The expansion joint spans between cold-formed metal stud walls framed with three-and-five-eighths-inch metal studs. Metal flashing integrates with the assembly at the joint intersection. Additional notes reference sheet A4.30 for further installation requirements.
W12 F G 11 1/4" 1' - 6 3/4" 3 5/8" METAL STUD METAL FLASHING SEE 8/ A4.30 FOR REMAINDER OF NOTES EXTERIOR JOINT COVER ( BALCO FCVSE - 5 EXTERIOR FLAT SEAL OR SIMILAR PRODUCT ) ALUMINUM BASE IN BLACK COLOR
