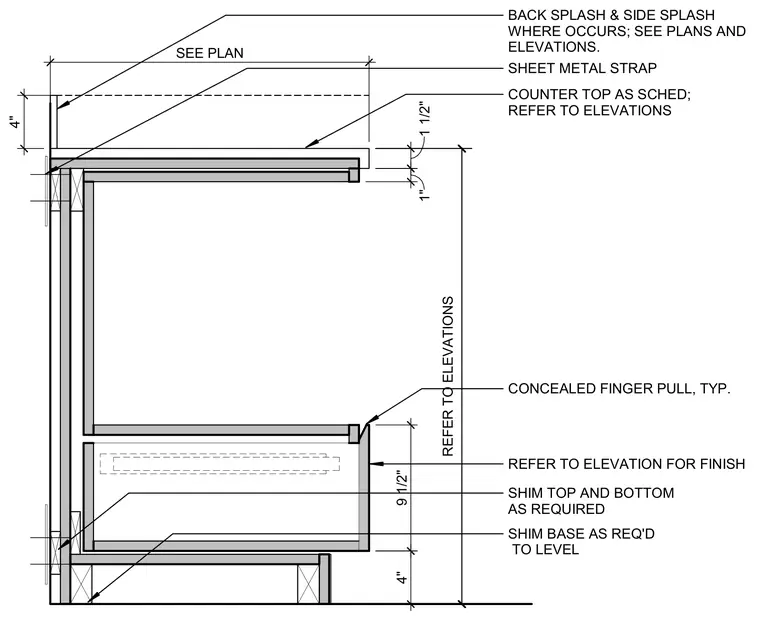

The base cabinet assembly features a countertop scheduled separately and supported by shims at the top and bottom as required to level the counter. A sheet metal strap secures the upper connection. The unit includes a four-inch back splash and side splash where indicated on plans and elevations. The drawer or opening features a typical concealed finger pull, with finishes and exact dimensions coordinated per architectural elevations and plans. The base is shimmed as required for proper leveling.
SHEET METAL STRAP SHIM TOP AND BOTTOM AS REQUIRED SHIM BASE AS REQ'D TO LEVEL COUNTER TOP AS SCHED; REFER TO ELEVATIONS 1 1/2" REFER TO ELEVATIONS REFER TO ELEVATION FOR FINISH SEE PLAN 9 1/2" CONCEALED FINGER PULL, TYP. 4" 4" BACK SPLASH & SIDE SPLASH WHERE OCCURS; SEE PLANS AND ELEVATIONS. 1"
