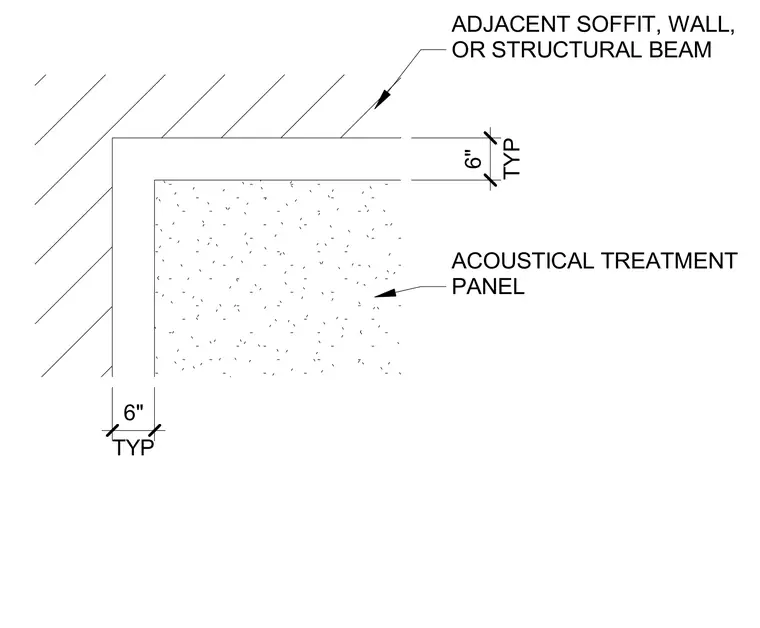

An acoustical treatment panel maintains a typical six-inch clearance from adjacent soffits, walls, or structural beams. Dimensions establish standard spacing requirements along the perimeter of the treatment layout.
TYP 6" TYP 6" ACOUSTICAL TREATMENT PANEL ADJACENT SOFFIT, WALL, OR STRUCTURAL BEAM
