Architectural · A-TK39N

Countertop with Accessible Lavatory

Materials

Elements

Walls Floors / Slabs Millwork / Casework

About this detail

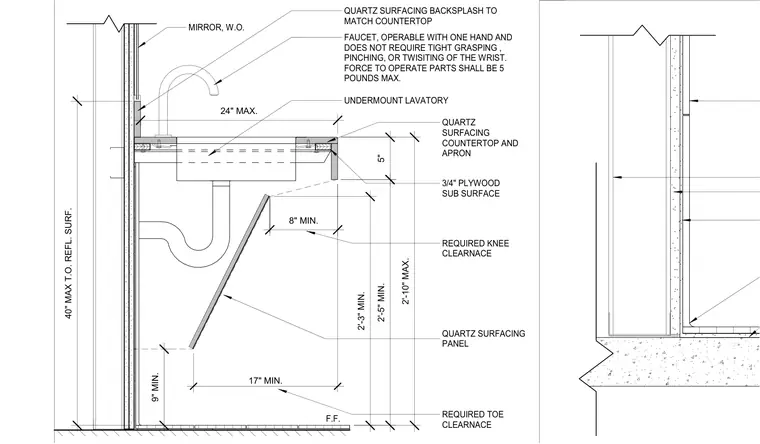

An accessible quartz surfacing countertop and apron are supported by a three-quarter inch plywood subsurface with an undermount lavatory. The assembly incorporates a quartz backsplash and a wall-mounted mirror. Clearances are defined with a minimum two-foot five-inch rim height above the finished floor, a minimum two-foot three-inch knee clearance, a minimum eight-inch knee depth at the toe panel, and a minimum seventeen-inch toe clearance. A faucet operable with one hand without tight grasping, pinching, or twisting is specified with a maximum operating force of five pounds. A quartz surfacing panel protects the knee space beneath the sink.
