Prefinished sheet metal head flashing is installed on site over a liquid applied flashing prestrip. The system incorporates a backup wall per assembly tag, a WRB membrane, Cascadia clips with a 1.75-inch vertical metal z-girt, and GRC cladding. Additional liquid applied flashing extends from the WRB over the sheet metal flashing to conceal fasteners, while a 1/2-inch silicone sealant with a backer rod ties into the continuous seal at the window perimeter. A factory-installed prefinished metal flashing with a hemmed edge and insect screen completes the exterior drainage plane above the window unit.

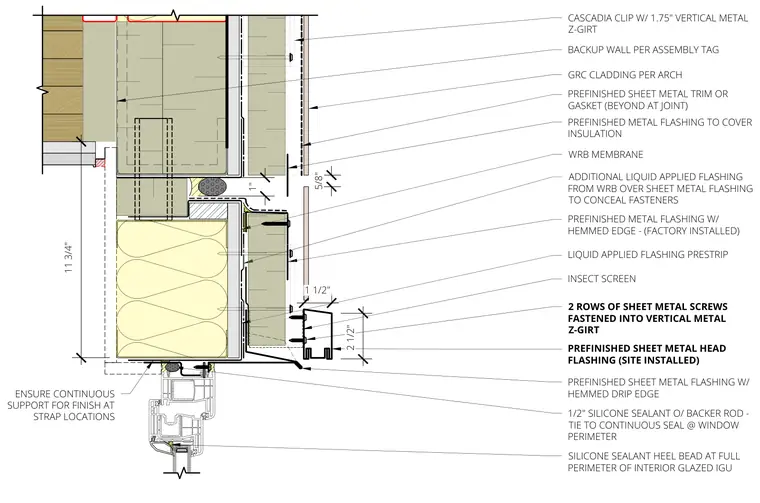

1" LIQUID APPLIED FLASHING PRESTRIP PREFINISHED SHEET METAL HEAD FLASHING (SITE INSTALLED) 1/2" SILICONE SEALANT O/ BACKER ROD - TIE TO CONTINUOUS SEAL @ WINDOW PERIMETER WRB MEMBRANE CASCADIA CLIP W/ 1.75" VERTICAL METAL Z-GIRT GRC CLADDING PER ARCH PREFINISHED SHEET METAL TRIM OR GASKET (BEYOND AT JOINT) BACKUP WALL PER ASSEMBLY TAG 2 ROWS OF SHEET METAL SCREWS FASTENED INTO VERTICAL METAL Z-GIRT ADDITIONAL LIQUID APPLIED FLASHING FROM WRB OVER SHEET METAL FLASHING TO CONCEAL FASTENERS PREFINISHED SHEET METAL FLASHING W/ HEMMED DRIP EDGE INSECT SCREEN PREFINISHED METAL FLASHING W/ HEMMED EDGE - (FACTORY INSTALLED) SILICONE SEALANT HEEL BEAD AT FULL PERIMETER OF INTERIOR GLAZED IGU 8001 8095 7134 8727 Ix=2.20 8727 Ix=2.20 5/8" PREFINISHED METAL FLASHING TO COVER INSULATION 11 3/4" 1 1/2" 2 1/2" ENSURE CONTINUOUS SUPPORT FOR FINISH AT STRAP LOCATIONS
