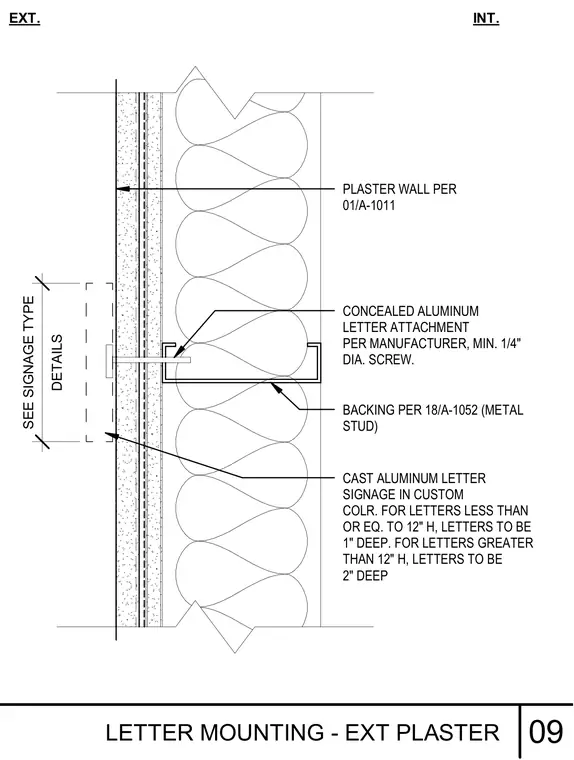

Cast aluminum letter signage mounts to an exterior plaster wall assembly supported by cold-formed steel metal studs. A concealed aluminum attachment secures the letter through the plaster finish with a minimum quarter-inch diameter screw. Wall backing is provided by metal studs per structural details. Letters twelve inches or less in height are one inch deep, while letters greater than twelve inches in height are two inches deep.
INT. EXT. DETAILS SEE SIGNAGE TYPE CONCEALED ALUMINUM LETTER ATTACHMENT PER MANUFACTURER, MIN. 1/4" DIA. SCREW. BACKING PER 18/A-1052 (METAL STUD) CAST ALUMINUM LETTER SIGNAGE IN CUSTOM COLR. FOR LETTERS LESS THAN OR EQ. TO 12" H, LETTERS TO BE 1" DEEP. FOR LETTERS GREATER THAN 12" H, LETTERS TO BE 2" DEEP PLASTER WALL PER 01/A-1011 09 LETTER MOUNTING - EXT PLASTER
