Architectural · A-TJKK6

Accessible Lavatory Counter and Mirror Mounting Clearances

Elements

About this detail

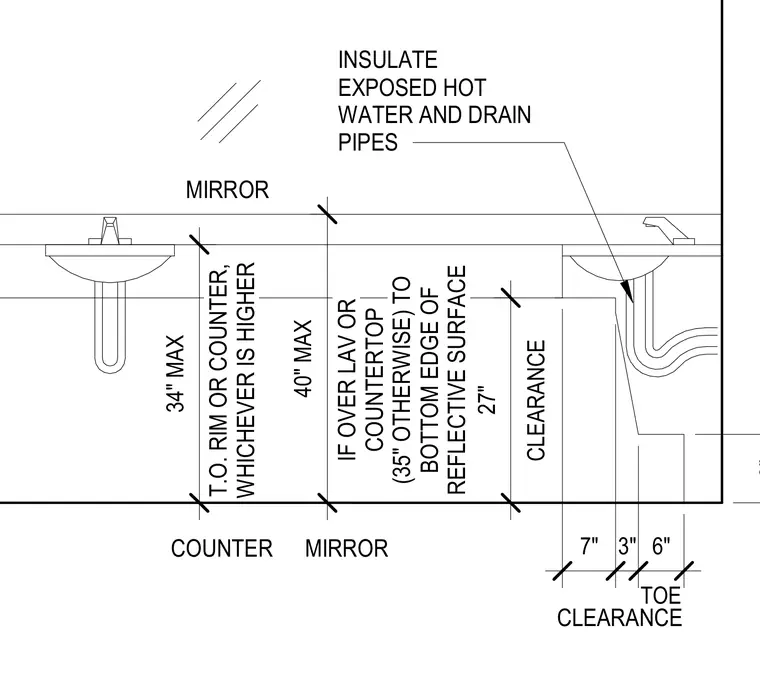

Accessible lavatory installations require specific vertical and horizontal clearances for counters, mirrors, and plumbing. The mirror bottom edge is mounted a maximum of forty inches above the floor if placed over a lavatory or countertop, or thirty-five inches otherwise. The top of the lavatory rim or countertop is positioned at a maximum of thirty-four inches, whichever is higher. Exposed hot water and drain pipes beneath the lavatory are fully insulated to prevent contact burns. Knee clearance requires a minimum height of twenty-seven inches, and toe clearance extends six inches back with a three-inch vertical recess and seven-inch toe clearance zone.
