A rated partition connects perpendicularly to a non-rated partition, forming an outside corner junction above a concrete slab. The rated partition assembly and non-rated partition assembly are constructed as scheduled. A reference note directs the builder to the wall priority legend on the partition schedule for intersection sequencing.

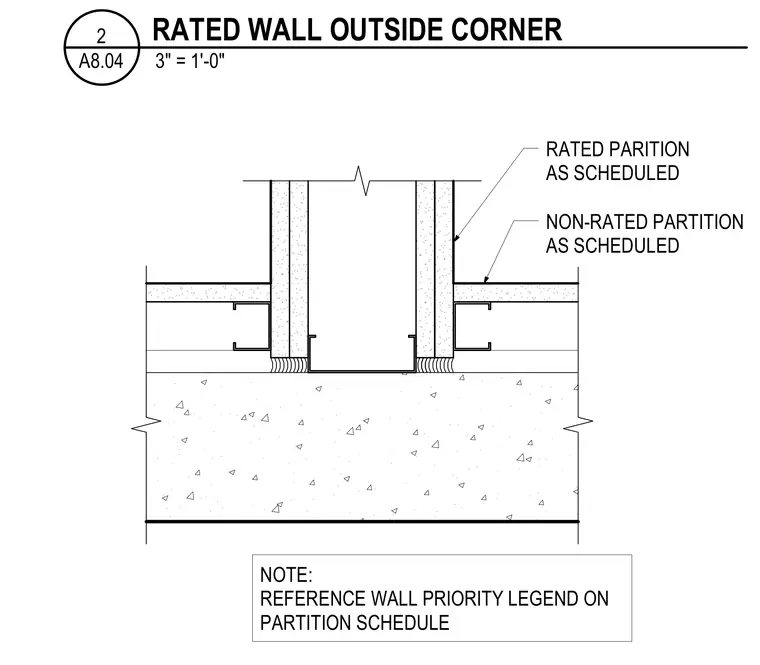

RATED PARITION AS SCHEDULED NON-RATED PARTITION AS SCHEDULED NOTE: REFERENCE WALL PRIORITY LEGEND ON PARTITION SCHEDULE 3" = 1'-0" A8.04 2 RATED WALL OUTSIDE CORNER
