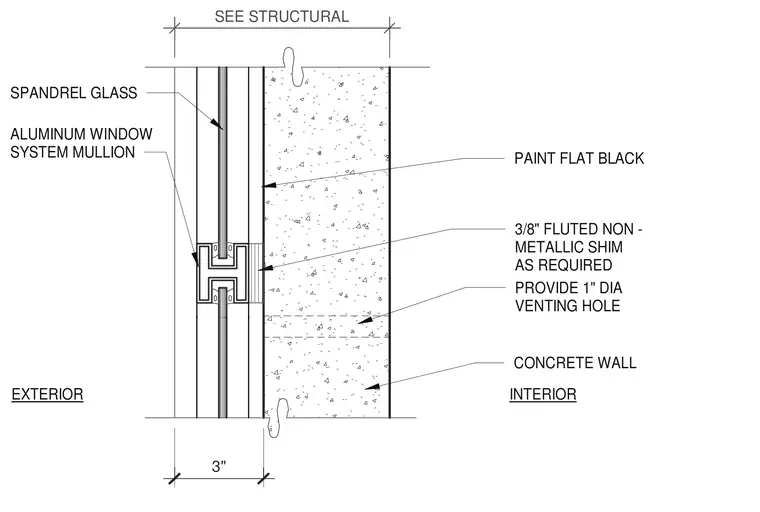

An aluminum window system mullion interfaces with spandrel glass and a concrete wall. A three-eighths-inch fluted non-metallic shim is provided as required between the assembly and the concrete. The interior concrete wall features a one-inch diameter venting hole and a flat black painted surface.
SEE STRUCTURAL SPANDREL GLASS ALUMINUM WINDOW SYSTEM MULLION CONCRETE WALL 3/8" FLUTED NON - METALLIC SHIM AS REQUIRED PROVIDE 1" DIA VENTING HOLE INTERIOR EXTERIOR PAINT FLAT BLACK 3"
