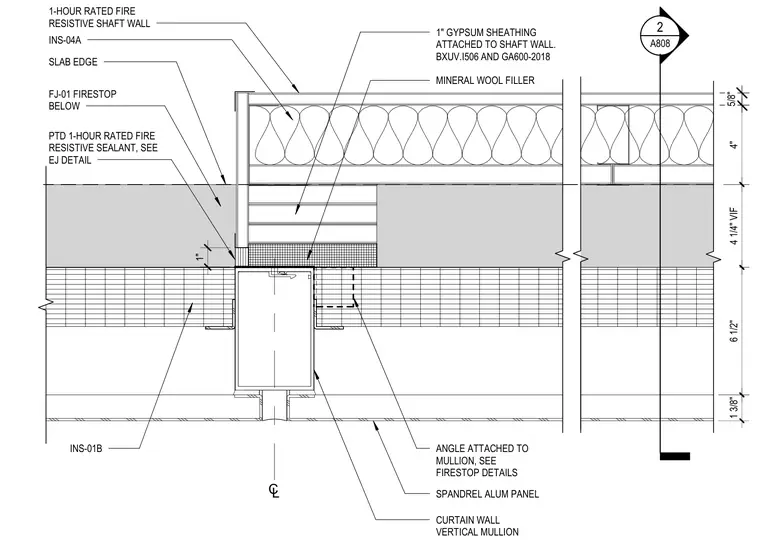

A fire-resistive assembly occurs at the intersection of a slab edge and an exterior curtain wall. A one-hour rated fire-resistive shaft wall with gypsum sheathing terminates above a mineral wool filler and a painted one-hour rated fire-resistive sealant joint at the slab edge. A curtain wall vertical mullion features an attachment angle tied into the firestop assembly as specified in the project details. Spandrel aluminum panels integrate with the vertical mullion and framing components to maintain the facade continuity.
L C SLAB EDGE PTD 1-HOUR RATED FIRE RESISTIVE SEALANT, SEE EJ DETAIL 1-HOUR RATED FIRE RESISTIVE SHAFT WALL FJ-01 FIRESTOP BELOW CURTAIN WALL VERTICAL MULLION ANGLE ATTACHED TO MULLION, SEE FIRESTOP DETAILS INS-01B SPANDREL ALUM PANEL 2 A808 INS-04A 6 1/2" 1 3/8" 4" 1" GYPSUM SHEATHING ATTACHED TO SHAFT WALL. BXUV.I506 AND GA600-2018 MINERAL WOOL FILLER 1" 5/8" 4 1/4" VIF
