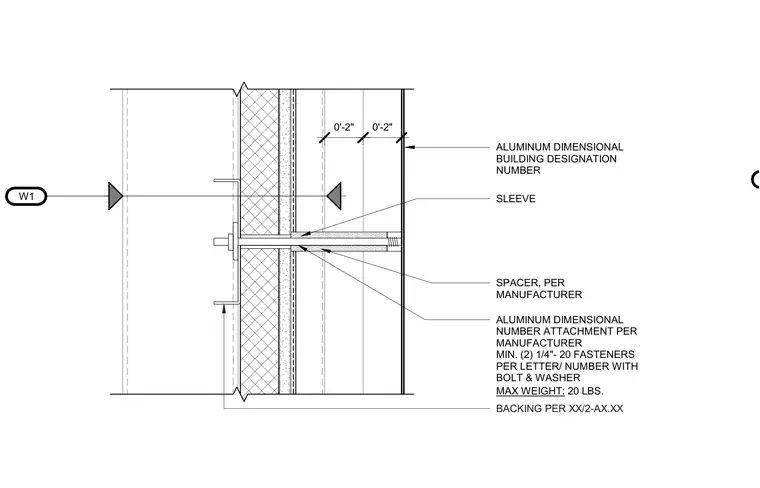

An aluminum dimensional building designation number attaches to the exterior wall with a minimum of two 1/4-20 fasteners per letter or number. A sleeve and bolt-with-washer spacer maintain the standoff distance, with a maximum weight limit of 20 pounds. The assembly bears against structural backing specified elsewhere in the drawings.
W1 ALUMINUM DIMENSIONAL BUILDING DESIGNATION NUMBER ALUMINUM DIMENSIONAL NUMBER ATTACHMENT PER MANUFACTURER MIN. (2) 1/4"- 20 FASTENERS PER LETTER/ NUMBER WITH BOLT & WASHER SPACER, PER MANUFACTURER BACKING PER XX/2-AX.XX MAX WEIGHT: 20 LBS. SLEEVE 0'-2" 0'-2"
