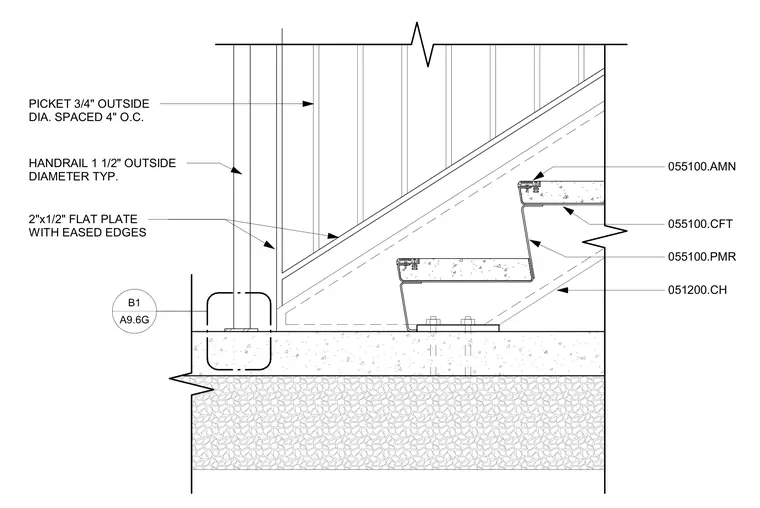

The stair stringer anchors to the concrete floor slab via a base plate connection. Vertical pickets with a three-quarter-inch outside diameter are spaced at four inches on center. The handrail features a one-and-a-half-inch outside diameter typical profile, mounted alongside a two-by-one-half-inch flat plate with eased edges.
HANDRAIL 1 1/2" OUTSIDE DIAMETER TYP. 2"x1/2" FLAT PLATE WITH EASED EDGES PICKET 3/4" OUTSIDE DIA. SPACED 4" O.C. 051200.CH 055100.PMR 055100.AMN 055100.CFT ________________________________________________ A9.6G B1
