Continuous sound absorptive pads run over the full length of all planks within the interlocking butt joint detention wall system. The pregrouted solid detention wall system connects to a security ceiling angle support at the ceiling perimeter. Tamper proof torx security screws fasten the assembly at twelve inches on center per the manufacturer's recommendations.

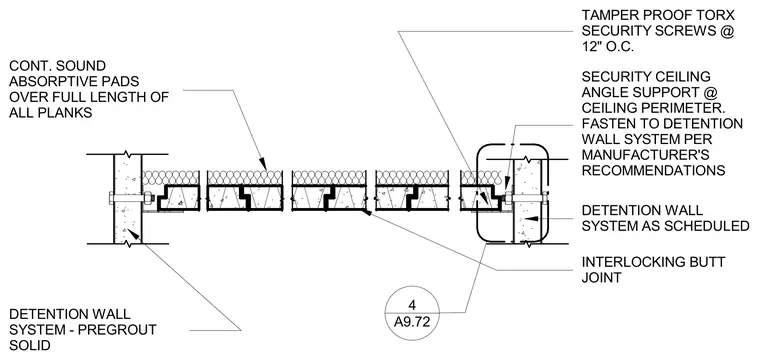

CONT. SOUND ABSORPTIVE PADS OVER FULL LENGTH OF ALL PLANKS INTERLOCKING BUTT JOINT DETENTION WALL SYSTEM - PREGROUT SOLID DETENTION WALL SYSTEM AS SCHEDULED TAMPER PROOF TORX SECURITY SCREWS @ 12" O.C. SECURITY CEILING ANGLE SUPPORT @ CEILING PERIMETER. FASTEN TO DETENTION WALL SYSTEM PER MANUFACTURER'S RECOMMENDATIONS A9.72 4
