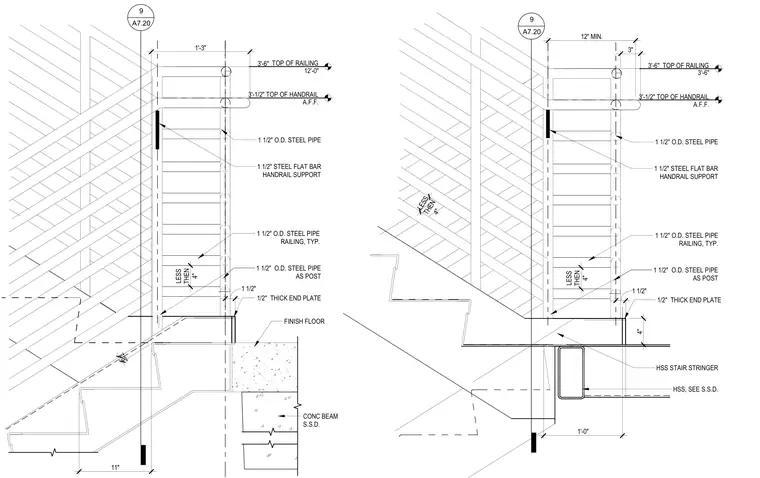

A continuous inner guardrail assembly anchors to a concrete beam and an HSS stair stringer. One-and-a-half-inch outside diameter steel pipe posts and intermediate rails form the guardrail, supported by a one-and-a-half-inch steel flat bar handrail. A half-inch thick end plate welded to the structural framing anchors the assembly, with the top of the railing positioned at three feet six inches and the handrail positioned at three feet one and a half inches above the finish floor.
TOP OF RAILING 3'-6" 3'-6" 3'-1/2" TOP OF HANDRAIL A.F.F. 1 1/2" O.D. STEEL PIPE 1 1/2" STEEL FLAT BAR HANDRAIL SUPPORT 1 1/2" O.D. STEEL PIPE RAILING, TYP. 1 1/2" O.D. STEEL PIPE AS POST HSS, SEE S.S.D. HSS STAIR STRINGER 9 A7.20 4" 1'-0" 1/2" THICK END PLATE 4" LESS THEN 1 1/2" 4" LESS THEN 3" 12" MIN. TOP OF RAILING 12'-0" 3'-6" 3'-1/2" TOP OF HANDRAIL A.F.F. 1 1/2" O.D. STEEL PIPE 1 1/2" STEEL FLAT BAR HANDRAIL SUPPORT 1 1/2" O.D. STEEL PIPE RAILING, TYP. 1 1/2" O.D. STEEL PIPE AS POST 9 A7.20 7/8" 1/2" THICK END PLATE 11" 4" LESS THEN 1 1/2" 1'-3" FINISH FLOOR CONC BEAM S.S.D.
