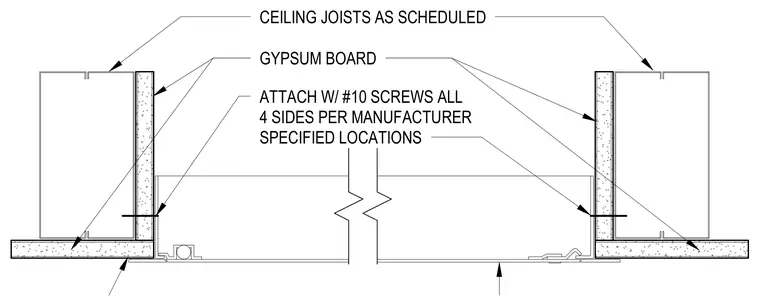

A metal flush frame ceiling access panel is integrated into a gypsum board ceiling assembly supported by ceiling joists as scheduled. The gypsum board is attached to the frame with number ten screws on all four sides at manufacturer specified locations.
CEILING JOISTS AS SCHEDULED GYPSUM BOARD ATTACH W/ #10 SCREWS ALL 4 SIDES PER MANUFACTURER SPECIFIED LOCATIONS
