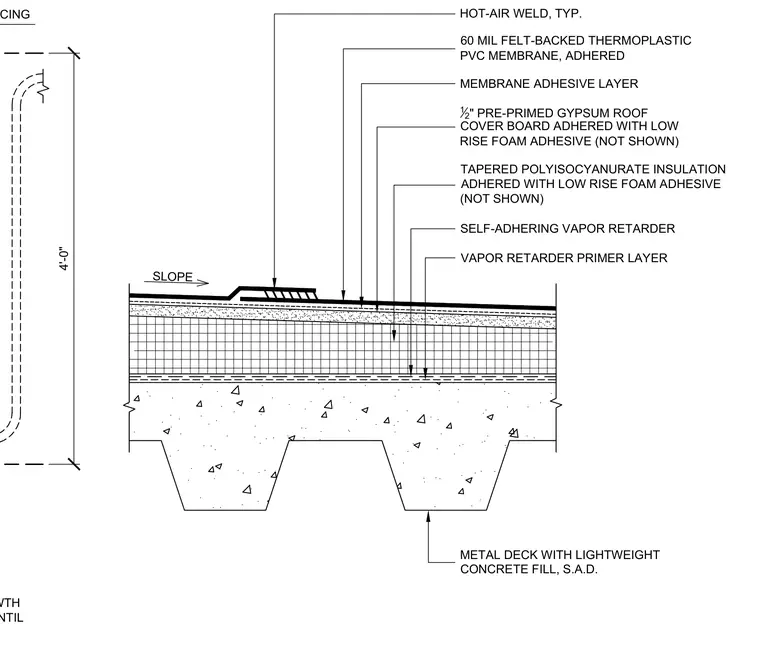

An adhered single-ply roof assembly is built upon a metal deck with a lightweight concrete fill. A self-adhering vapor retarder sits atop the concrete layer, applied over a vapor retarder primer layer. Tapered polyisocyanurate insulation is adhered above the vapor retarder using low-rise foam adhesive. A half-inch pre-primed gypsum roof cover board is similarly adhered over the insulation. A sixty-mil felt-backed thermoplastic PVC membrane caps the assembly, featuring hot-air welded seams.
HOT-AIR WELD, TYP. 12 " PRE-PRIMED GYPSUM ROOF COVER BOARD ADHERED WITH LOW RISE FOAM ADHESIVE (NOT SHOWN) 60 MIL FELT-BACKED THERMOPLASTIC PVC MEMBRANE, ADHERED TAPERED POLYISOCYANURATE INSULATION ADHERED WITH LOW RISE FOAM ADHESIVE (NOT SHOWN) METAL DECK WITH LIGHTWEIGHT CONCRETE FILL, S.A.D. SELF-ADHERING VAPOR RETARDER VAPOR RETARDER PRIMER LAYER MEMBRANE ADHESIVE LAYER SLOPE BOARDS MAY RISE FOLLOWING APPLICATION OF BEADS AT 6" O.C. DUE TO POST GROWTH OF THE ADHESIVE AND MAY REQUIRE REPEATED WALK-IN OR TEMPORARY BALLAST UNTIL 4'-0" 6" BEAD SPACING
