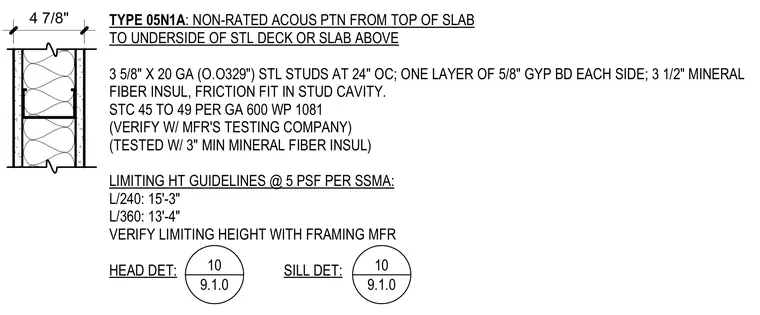

This non-rated acoustic partition type 05N1A extends from the top of the slab to the underside of the steel deck or slab above. The assembly consists of 3 5/8-inch by 20-gauge steel studs spaced at 24 inches on center with one layer of 5/8-inch gypsum board on each side. A 3 1/2-inch mineral fiber insulation is friction-fit within the stud cavity, achieving an STC rating of 45 to 49 per GA 600 WP 1081. Limiting height guidelines at 5 pounds per square foot per SSMA are 15 feet 3 inches for L/240 and 13 feet 4 inches for L/360, with requirements to verify the limiting height with the framing manufacturer.
4 7/8" TYPE 05N1A : NON-RATED ACOUS PTN FROM TOP OF SLAB TO UNDERSIDE OF STL DECK OR SLAB ABOVE 3 5/8" X 20 GA (O.O329") STL STUDS AT 24" OC; ONE LAYER OF 5/8" GYP BD EACH SIDE; 3 1/2" MINERAL FIBER INSUL, FRICTION FIT IN STUD CAVITY. STC 45 TO 49 PER GA 600 WP 1081 (VERIFY W/ MFR'S TESTING COMPANY) (TESTED W/ 3" MIN MINERAL FIBER INSUL) LIMITING HT GUIDELINES @ 5 PSF PER SSMA: L/240: 15'-3" L/360: 13'-4" VERIFY LIMITING HEIGHT WITH FRAMING MFR HEAD DET: SILL DET: 9.1.0 10 9.1.0 10
