Architectural · A-TGTMW

Lower Cabinet W/ File Drawers

Materials

Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

About this detail

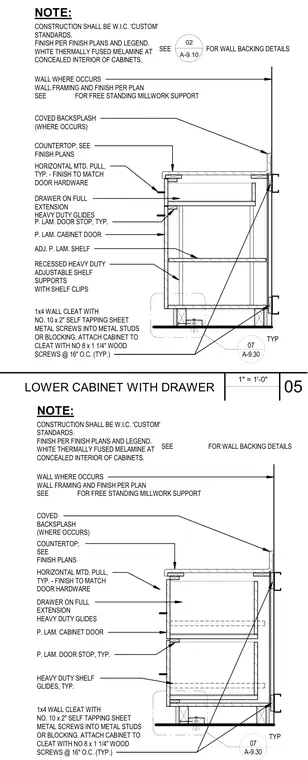

A lower base cabinet is anchored to wall framing with a 1x4 wood wall cleat secured by number 10 by 2-inch self-tapping sheet metal screws into metal studs or blocking. The cabinet attaches to the cleat using number 8 by 1-1/4-inch wood screws spaced at 16 inches on center. A plastic laminate countertop features a coved backsplash where applicable, and drawers are mounted on full-extension heavy-duty glides with horizontal pulls. Adjustable plastic laminate shelves are supported by recessed heavy-duty shelf standards and clips. Cabinet doors feature plastic laminate construction with typical door stops, and the concealed interior surfaces are finished with white thermally fused melamine adhering to W.I.C. custom standards.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
