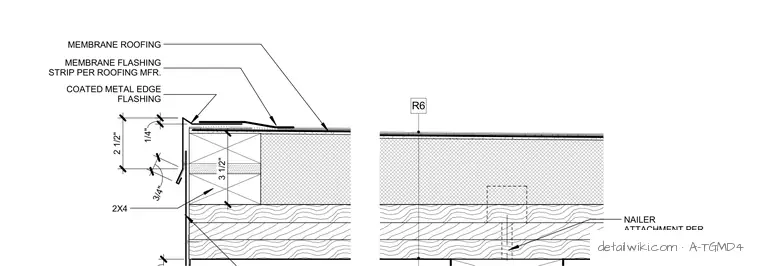

A-TGMD4 — Drive Through Roof Eave

Architectural · A-TGMD4

Drive Through Roof Eave

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.12
Discipline: Architectural

Materials

Membrane / Roofing Metal (misc.)Timber / Wood

Elements

Beams Decks Facades / Cladding Insulation Roofs Waterproofing / Flashing

Text on the drawing

2 1/2" MEMBRANE ROOFING MEMBRANE FLASHING STRIP PER ROOFING MFR. COATED METAL EDGE FLASHING 1/4" 3/4" NAILER ATTACHMENT PER STRUCTURAL R6 3 1/2" 2X4

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
