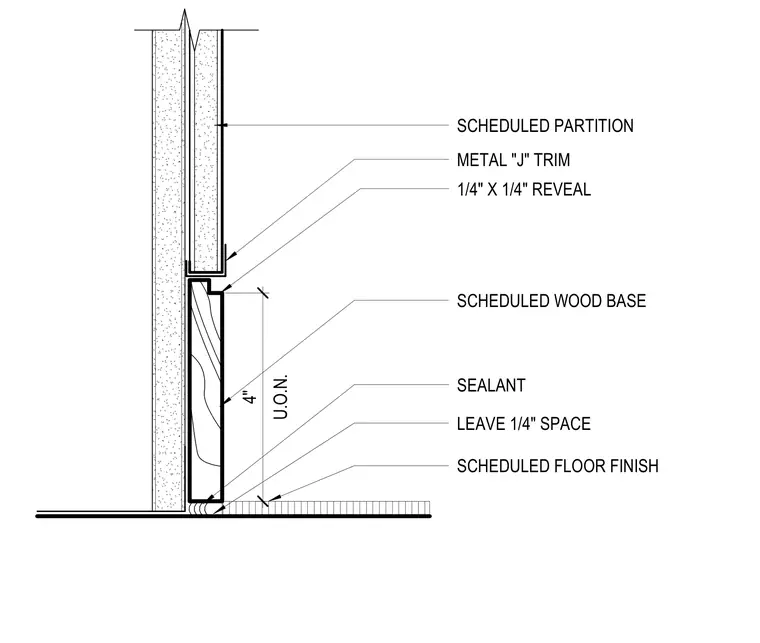

A scheduled wood base aligns flush with a metal J trim at the base of a scheduled partition. A one-quarter by one-quarter inch reveal sits at the top of the wood base. A one-quarter inch space is left above the scheduled floor finish, sealed with sealant unless otherwise noted. The wood base has a height of four inches.
METAL "J" TRIM SCHEDULED PARTITION SCHEDULED FLOOR FINISH LEAVE 1/4" SPACE SCHEDULED WOOD BASE 1/4" X 1/4" REVEAL SEALANT U.O.N. 4"
