Wood Window Head with Stucco and Double Roller Shade

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Windows Ceilings Insulation Roof / Floor Openings

About this detail

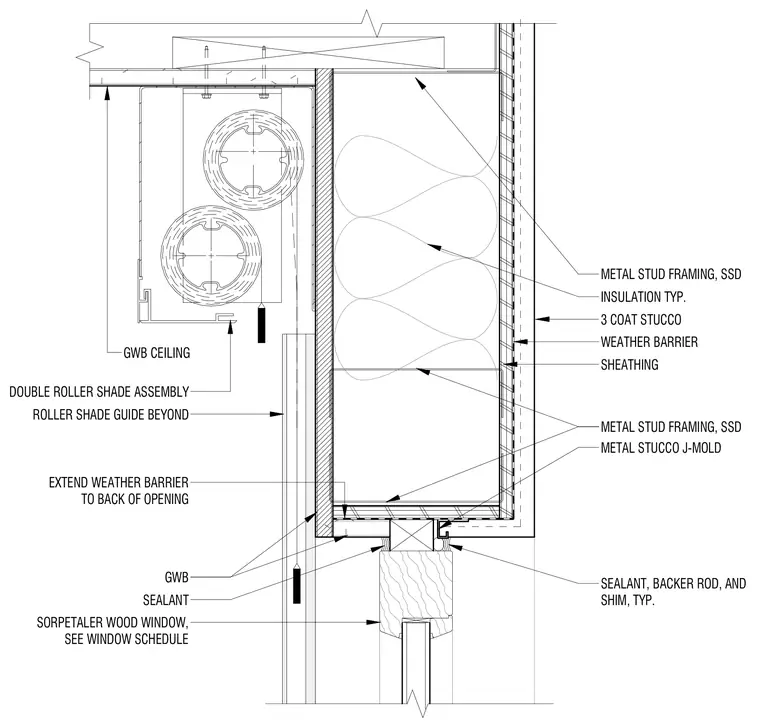

The wood window head is framed by cold-formed steel studs with cavity insulation and exterior sheathing. A three-coat stucco finish is applied over a weather barrier, with a metal stucco J-mold terminating at the window frame. Sealant, backer rod, and shims fill the joint between the window frame and the head blocking. The interior features a gypsum board ceiling with a recessed double roller shade assembly and guide.
