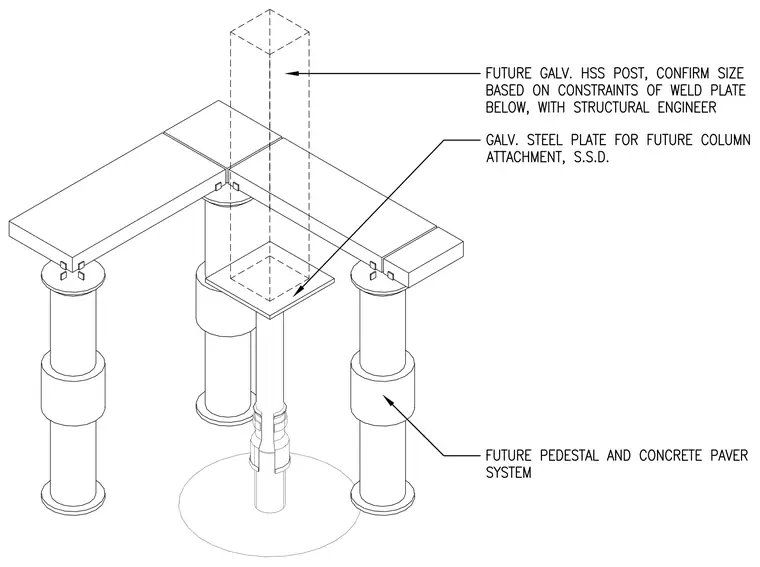

A galvanized steel plate receives a future galvanized hollow structural section post, with the post size confirmed with the structural engineer based on weld plate constraints. The attachment plate sits above and integrates with a surrounding pedestal and concrete paver system. Surrounding adjustable pedestals support adjacent concrete pavers at finished floor level.
