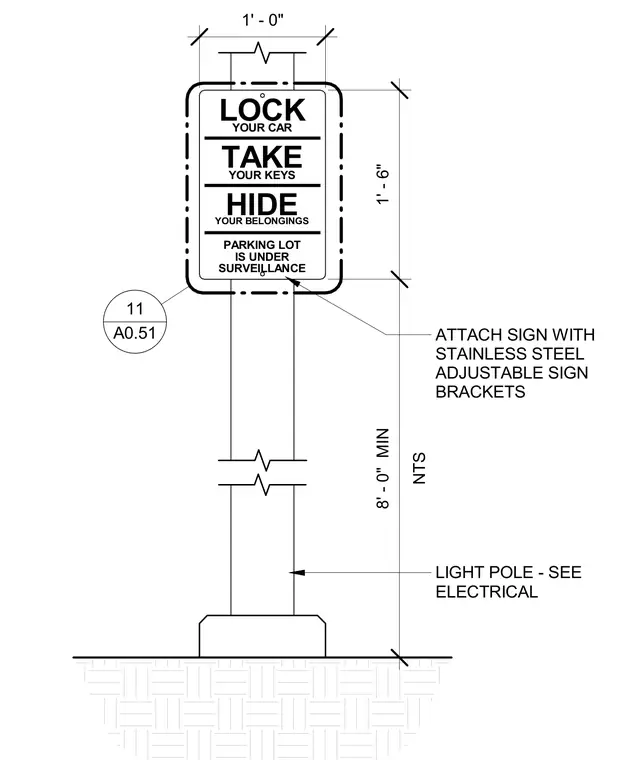

A security sign is secured to a light pole using stainless steel adjustable sign brackets. The sign has a width of 1 foot 0 inches and a height of 1 foot 6 inches. The bottom of the sign is positioned at a minimum height of 8 feet 0 inches above the base. The light pole connects to an electrical base per electrical drawings.
LOCK TAKE HIDE YOUR CAR YOUR KEYS YOUR BELONGINGS PARKING LOT IS UNDER SURVEILLANCE ATTACH SIGN WITH STAINLESS STEEL ADJUSTABLE SIGN BRACKETS LIGHT POLE - SEE ELECTRICAL NTS 8' - 0" MIN 1' - 6" 1' - 0" A0.51 11
