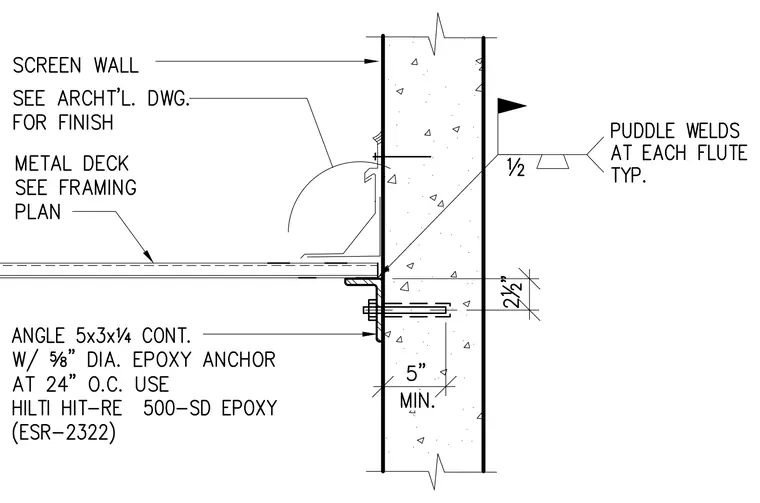

A continuous 5x3x1/4 angle supports the metal deck at a concrete screen wall, anchored by five-eighth-inch diameter epoxy anchors spaced at twenty-four inches on center using Hilti HIT-RE 500-SD epoxy per ESR-2322. The metal deck is secured with puddle welds at each flute typically. A screen wall finish is indicated per architectural drawings with a two-and-one-half-inch vertical dimension and a five-inch minimum edge distance.
