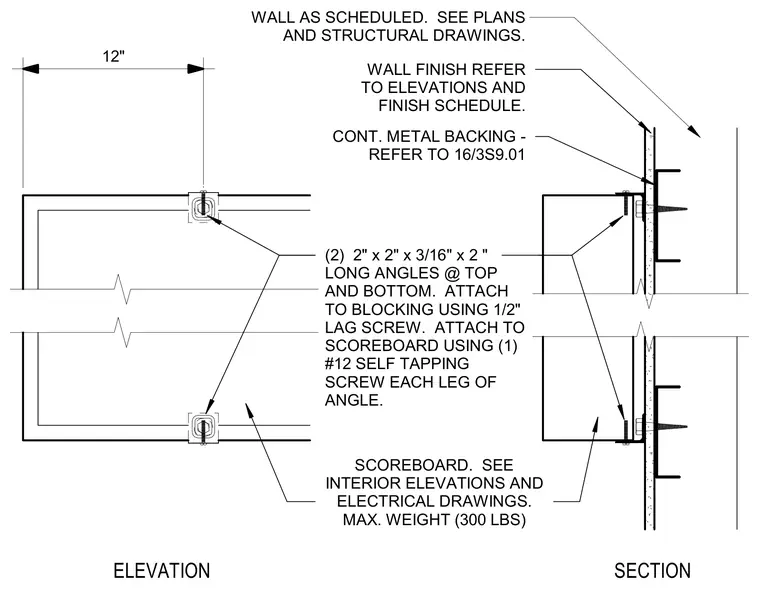

Two 2-inch by 2-inch by 3/16-inch by 2-inch long steel angles at the top and bottom secure a scoreboard with a maximum weight of 300 pounds. The angles attach to wall blocking using 1/2-inch lag screws and connect to the scoreboard housing using one #12 self-tapping screw on each leg. The wall assembly incorporates continuous metal backing and a scheduled wall finish over cold-formed metal studs.
SCOREBOARD. SEE INTERIOR ELEVATIONS AND ELECTRICAL DRAWINGS. MAX. WEIGHT (300 LBS) (2) 2" x 2" x 3/16" x 2 " LONG ANGLES @ TOP AND BOTTOM. ATTACH TO BLOCKING USING 1/2" LAG SCREW. ATTACH TO SCOREBOARD USING (1) #12 SELF TAPPING SCREW EACH LEG OF ANGLE. SECTION ELEVATION CONT. METAL BACKING - REFER TO 16/3S9.01 WALL FINISH REFER TO ELEVATIONS AND FINISH SCHEDULE. WALL AS SCHEDULED. SEE PLANS AND STRUCTURAL DRAWINGS. 12"
