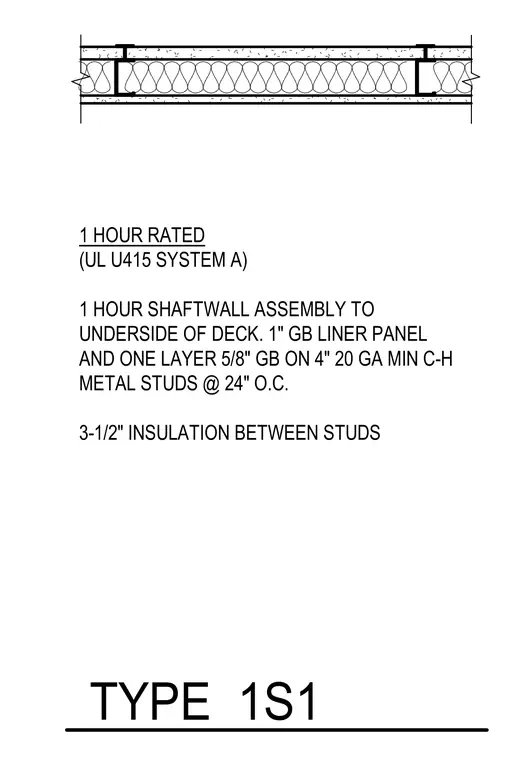

This one-hour rated shaftwall assembly follows UL system design U415, utilizing one-inch gypsum board liner panels and one layer of five-eighths-inch gypsum board mounted on four-inch, twenty-gauge minimum C-H metal studs spaced at twenty-four inches on center. Three-and-a-half-inch thermal insulation fills the cavity between the metal studs.
1 HOUR RATED (UL U415 SYSTEM A) 1 HOUR SHAFTWALL ASSEMBLY TO UNDERSIDE OF DECK. 1" GB LINER PANEL AND ONE LAYER 5/8" GB ON 4" 20 GA MIN C-H METAL STUDS @ 24" O.C. 3-1/2" INSULATION BETWEEN STUDS TYPE 1S1
