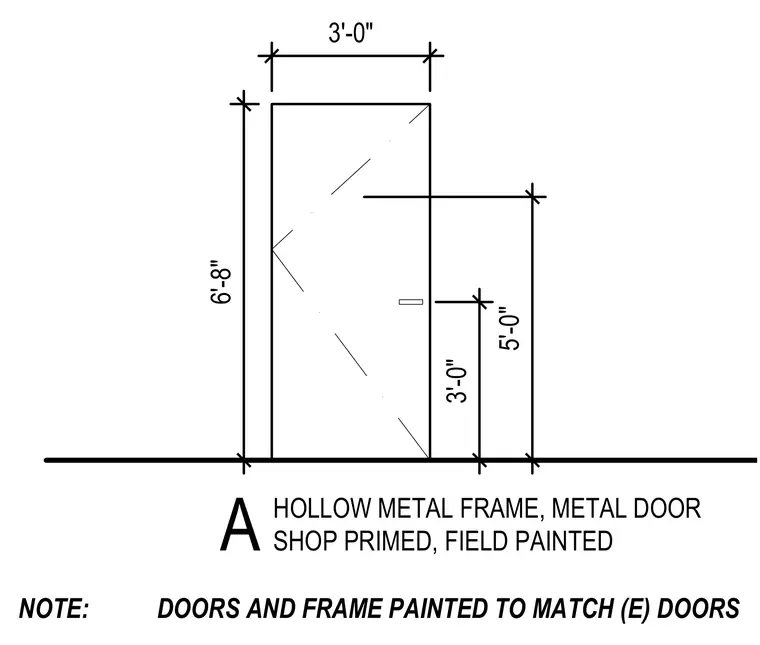

This elevation shows a standard metal door set within a hollow metal frame, dimensioned at three feet wide by six feet eight inches high. The metal door arrives shop primed and is finished in the field with paint matching existing doors. Additional vertical and horizontal dimensions establish standard clearances and hardware mounting heights.
HOLLOW METAL FRAME, METAL DOOR A SHOP PRIMED, FIELD PAINTED 3'-0" 6'-8" 3'-0" 5'-0" NOTE: DOORS AND FRAME PAINTED TO MATCH (E) DOORS
