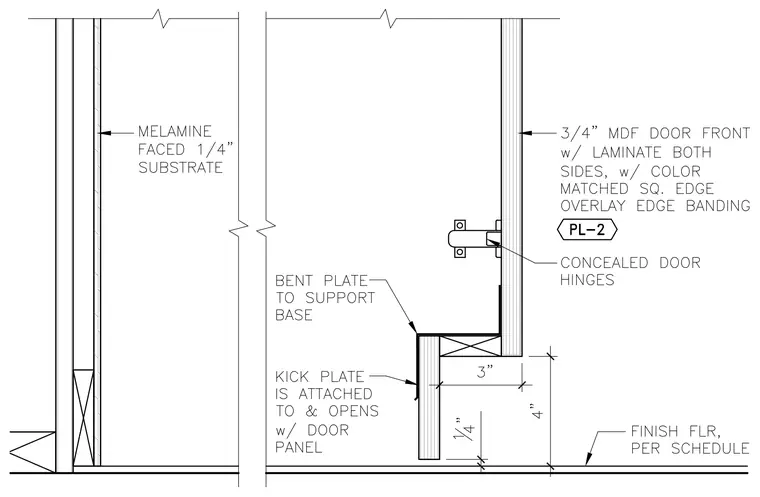

The assembly features a 3/4-inch medium-density fiberboard door front with laminate on both sides and color-matched square edge overlay edge banding, designated as PL-2. Concealed door hinges mount to the door panel, which extends down to create a 4-inch overall height above the finish floor with a 1/4-inch floor clearance. A bent plate supports the base, and a kick plate is attached to and opens with the door panel, featuring a 3-inch horizontal offset dimension. The adjacent framing includes a melamine-faced 1/4-inch substrate.
