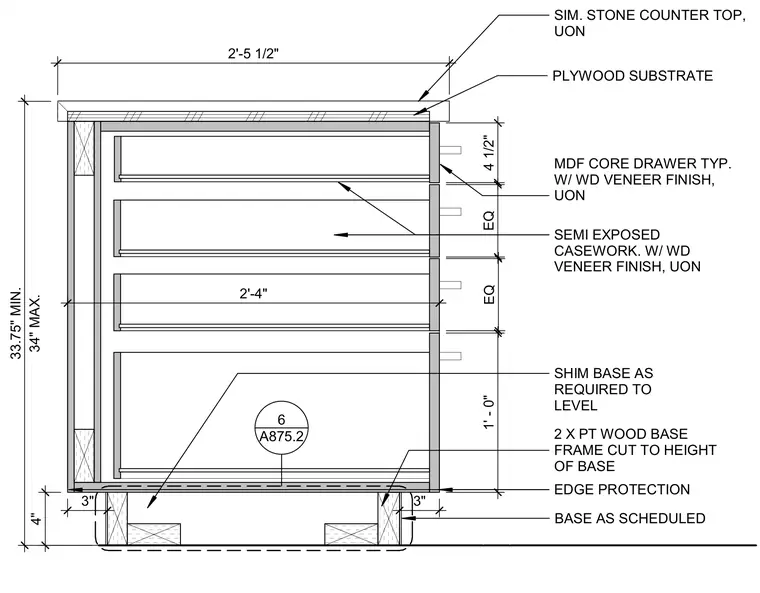

A simulated stone countertop is supported by a plywood substrate over semi-exposed casework featuring medium-density fiberboard core drawers with wood veneer finish. The cabinet rests on a two-by pressure-treated wood base frame cut to height and shimmed as required to level the assembly. Edge protection is detailed at the base, with a four-inch base as scheduled.
SIM. STONE COUNTER TOP, UON 2 X PT WOOD BASE FRAME CUT TO HEIGHT OF BASE SHIM BASE AS REQUIRED TO LEVEL PLYWOOD SUBSTRATE MDF CORE DRAWER TYP. W/ WD VENEER FINISH, UON 1' - 0" 4 1/2" SEMI EXPOSED CASEWORK. W/ WD VENEER FINISH, UON EQ EQ 3" 4" 3" BASE AS SCHEDULED 2'-4" 2'-5 1/2" 34" MAX. 33.75" MIN. A875.2 6 EDGE PROTECTION
