A white low-pressure laminate shelf with cleats is mounted at five feet four inches above finished floor, with all exposed surfaces finished. A chrome-finish rod with an escutcheon is installed below the shelf. Intermediate supports are provided as required by the length of the rod, maintaining an unsupported length no greater than thirty-six inches.

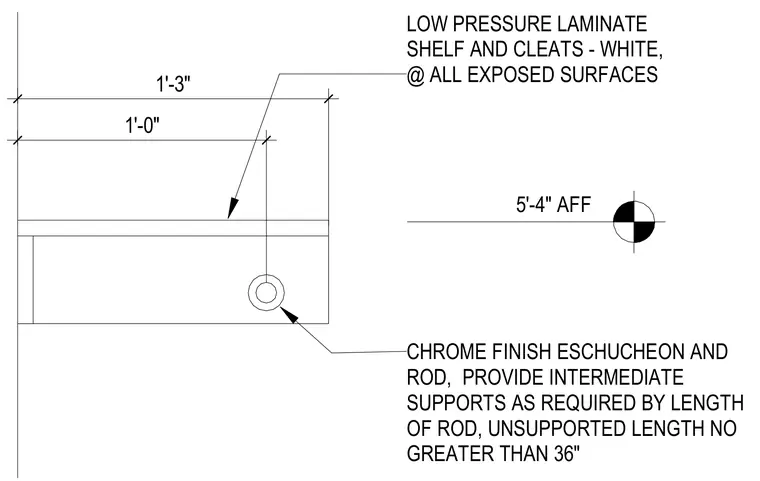

5'-4" AFF LOW PRESSURE LAMINATE SHELF AND CLEATS - WHITE, @ ALL EXPOSED SURFACES CHROME FINISH ESCHUCHEON AND ROD, PROVIDE INTERMEDIATE SUPPORTS AS REQUIRED BY LENGTH OF ROD, UNSUPPORTED LENGTH NO GREATER THAN 36" 1'-0" 1'-3"
