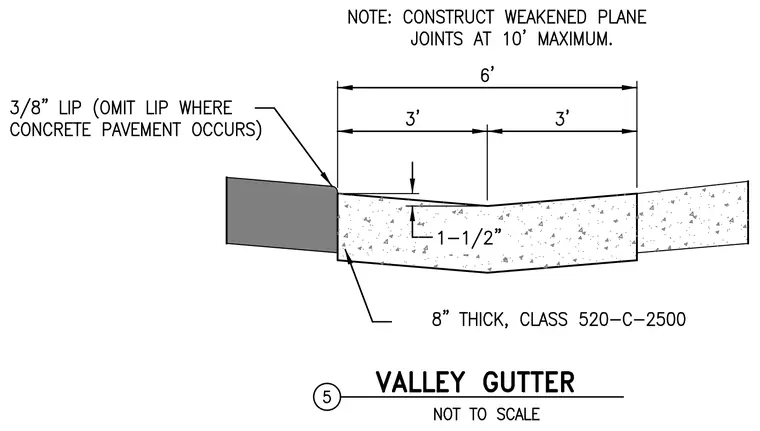

A concrete valley gutter measures six feet in total width with a center slope depth of one and one-half inches. The gutter is constructed using eight-inch thick class 520-C-2500 concrete. A three-eighths inch lip is included on one edge, noted to be omitted where concrete pavement occurs. Weakened plane joints are required to be constructed at a maximum spacing of ten feet.
