Architectural · A-TF7FH

Canopy Connection at Curtain Wall

Materials

Steel

Elements

Beams Walls Curtain Walls Canopies Waterproofing / Flashing Drainage Connections / Plates

Connections

HSS Connection Bolted Connection Timber / Mass-Timber Connection

About this detail

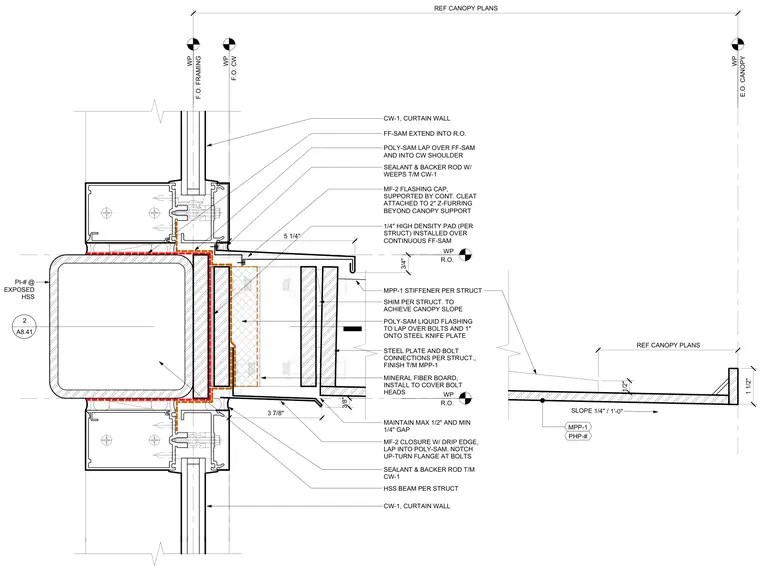

A structural hollow structural section beam penetrates and intersects a curtain wall system to support an exterior canopy in this vertical section detail. A steel knife plate and bolted connection tie the canopy structure to the hollow structural section beam, with a high density pad and mineral fiber board installed over the connection elements. Liquid flashing and membrane strips wrap the junction, working in conjunction with metal flashing caps, continuous cleats, and z-furring. Sealant with backer rods and weeps are provided at the curtain wall interface. The canopy slopes outward at one-quarter inch per foot, terminating in a metal closure with a drip edge.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
