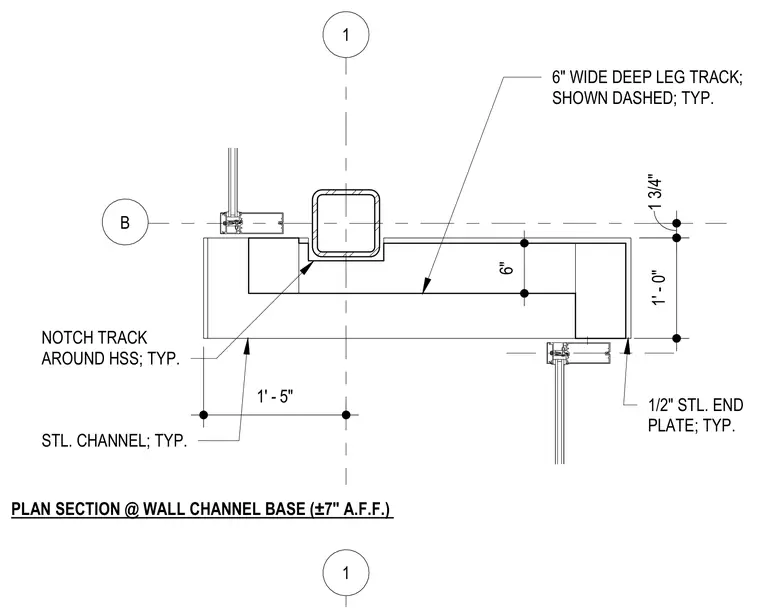

A six-inch wide deep leg track is notched around a hollow structural section column and shown dashed as a typical condition at the wall channel base approximately seven inches above finished floor. A typical steel channel runs along the base assembly with a typical half-inch steel end plate terminating the run. Grid lines 1 and B intersect at the column centerline.
1 B 1' - 5" 1 3/4" 1' - 0" 6" WIDE DEEP LEG TRACK; SHOWN DASHED; TYP. STL. CHANNEL; TYP. 1/2" STL. END PLATE; TYP. 1 NOTCH TRACK AROUND HSS; TYP. PLAN SECTION @ WALL CHANNEL BASE (±7" A.F.F.) 6"
