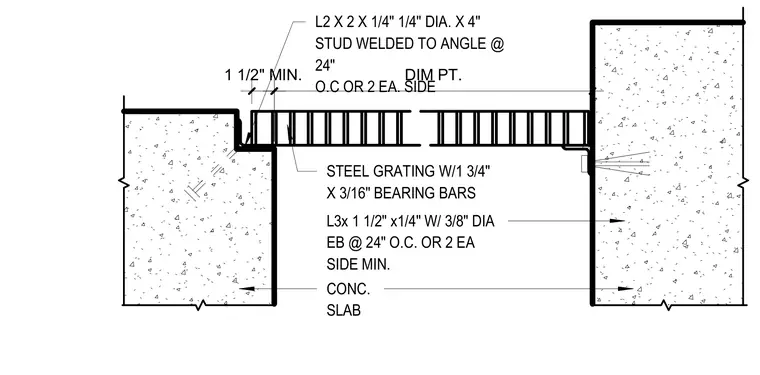

Steel grating featuring one and three-quarter inch by three-sixteenth inch bearing bars spans between concrete slabs. The grating rests on two by two by one-quarter inch steel angles equipped with one-quarter inch diameter by four-inch studs welded at twenty-four inches on center or two each side. The support angles are embedded or anchored to the concrete slab using three-eighths inch diameter expansion bolts spaced at twenty-four inches on center or two each side with a minimum one and one-half inch dimension point.
STEEL GRATING W/1 3/4" X 3/16" BEARING BARS L2 X 2 X 1/4" 1/4" DIA. X 4" STUD WELDED TO ANGLE @ 24" O.C OR 2 EA. SIDE CONC. SLAB L3x 1 1/2" x1/4" W/ 3/8" DIA EB @ 24" O.C. OR 2 EA SIDE MIN. 1 1/2" MIN. DIM PT.
