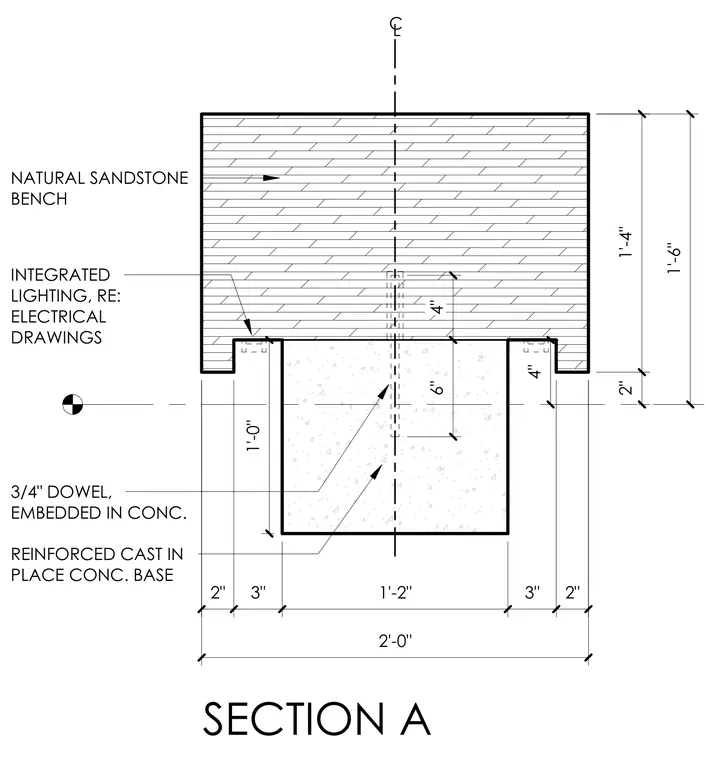

A natural sandstone bench is supported by a reinforced cast-in-place concrete base measuring two feet wide. A three-quarter-inch dowel is embedded into the concrete base to secure the stone bench assembly. Integrated lighting chases are incorporated into the underside of the sandstone bench per the electrical drawings. The overall height of the assembly is one foot six inches from the bottom of the concrete base to the top of the bench.
1'-0" 4" 6" 1'-4" 2" 4" 1'-6" CL 2" 3" 1'-2" 3" 2" 2'-0" SECTION A 3/4" DOWEL, EMBEDDED IN CONC. REINFORCED CAST IN PLACE CONC. BASE INTEGRATED LIGHTING, RE: ELECTRICAL DRAWINGS NATURAL SANDSTONE BENCH
