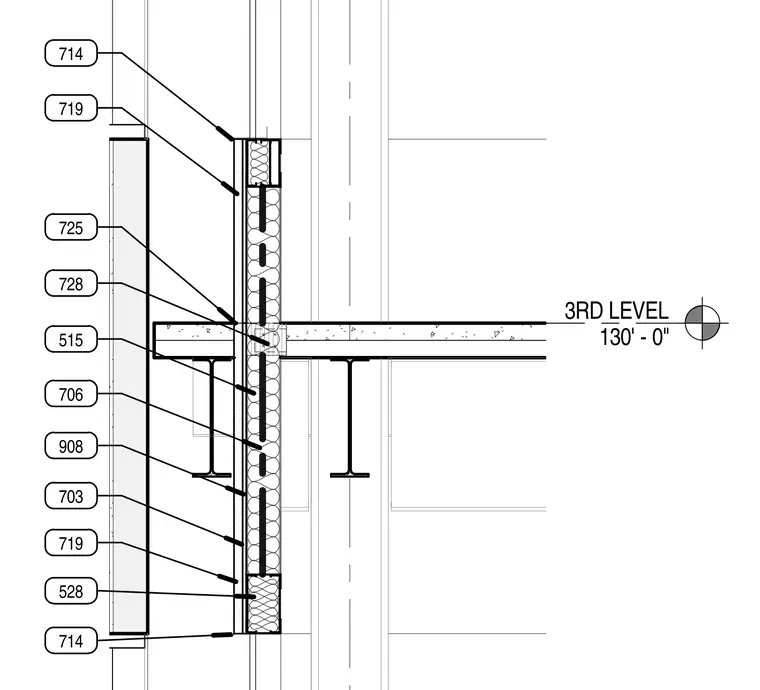

This building section details the exterior wall assembly at the third level elevation of 130 feet 0 inches. The detail shows structural steel framing including wide flange beams, exterior insulation, framing studs, and exterior cladding panels. Multiple detail callout tags reference related connection and assembly details.
