A twelve gauge ceiling clip formed from a one-and-one-half inch by one-and-one-half inch by two inch wide minimum angle is anchored to the underside of a lightweight or normal weight concrete slab. The clip is bent to align with the hanger wire and maintains a maximum one-half inch offset clearance. The assembly supports suspended ceiling systems.

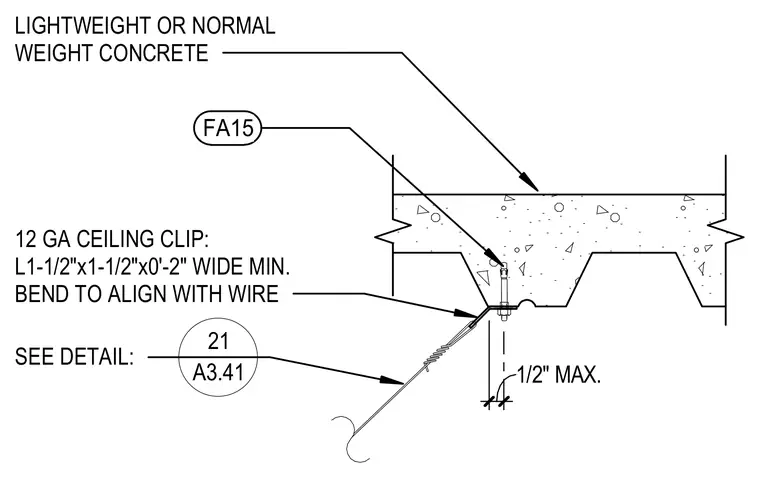

12 GA CEILING CLIP: L1-1/2"x1-1/2"x0'-2" WIDE MIN. BEND TO ALIGN WITH WIRE LIGHTWEIGHT OR NORMAL WEIGHT CONCRETE FA15 SEE DETAIL: 21 A3.41 1/2" MAX.
