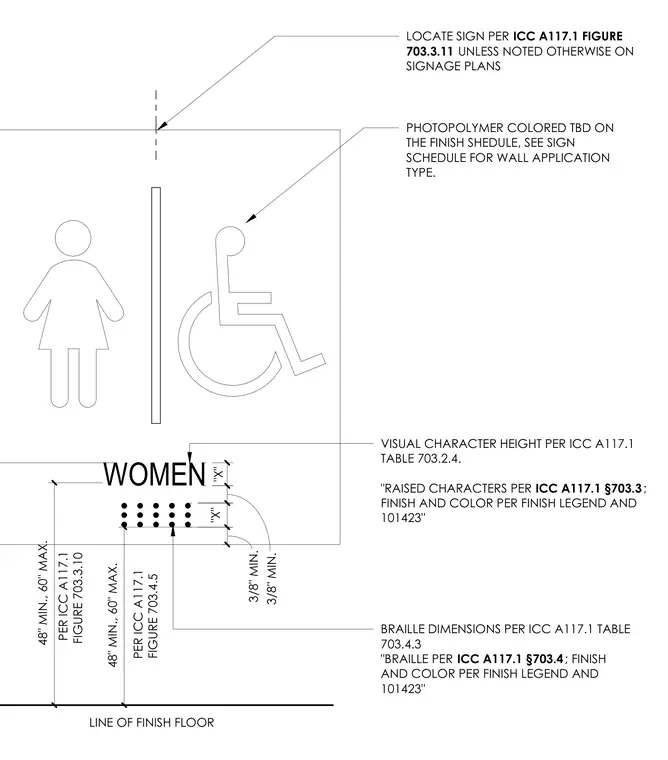

The photopolymer sign features raised characters and Grade 2 Braille adhering to ICC A117.1 standards. Visual character heights and Braille dimensions comply with specific code tables, with finishes and colors determined by the finish schedule. The sign mounts between forty-eight inches minimum and sixty inches maximum above the line of finish floor. Location follows ICC A117.1 figure requirements relative to the door and wall application types.
WOMEN PHOTOPOLYMER COLORED TBD ON THE FINISH SHEDULE, SEE SIGN SCHEDULE FOR WALL APPLICATION TYPE. LOCATE SIGN PER ICC A117.1 FIGURE 703.3.11 UNLESS NOTED OTHERWISE ON SIGNAGE PLANS 3/8" MIN. LINE OF FINISH FLOOR 48" MIN., 60" MAX. PER ICC A117.1 FIGURE 703.4.5 48" MIN., 60" MAX. PER ICC A117.1 FIGURE 703.3.10 BRAILLE DIMENSIONS PER ICC A117.1 TABLE 703.4.3 "BRAILLE PER ICC A117.1 §703.4 ; FINISH AND COLOR PER FINISH LEGEND AND 101423" "X" 3/8" MIN. "X" VISUAL CHARACTER HEIGHT PER ICC A117.1 TABLE 703.2.4. "RAISED CHARACTERS PER ICC A117.1 §703.3 ; FINISH AND COLOR PER FINISH LEGEND AND 101423"
