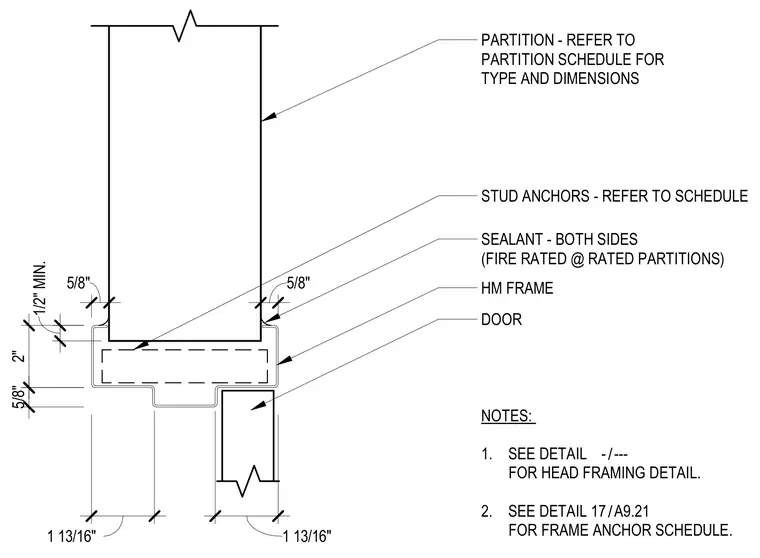

A hollow metal frame connects to a partition wall at the head. Sealant is applied to both sides of the frame, with fire-rated sealant used at rated partitions. Stud anchors are specified per the partition schedule, and dimensions indicate a two-inch frame depth with five-eighths inch returns. Additional notes direct the builder to the appropriate head framing detail and frame anchor schedule.
PARTITION - REFER TO PARTITION SCHEDULE FOR TYPE AND DIMENSIONS SEALANT - BOTH SIDES (FIRE RATED @ RATED PARTITIONS) HM FRAME DOOR 2" 5/8" 1 13/16" 1 13/16" STUD ANCHORS - REFER TO SCHEDULE NOTES: 1. SEE DETAIL FOR HEAD FRAMING DETAIL. 2. SEE DETAIL FOR FRAME ANCHOR SCHEDULE. 5/8" 5/8" 1/2" MIN. / - --- / 17 A9.21
