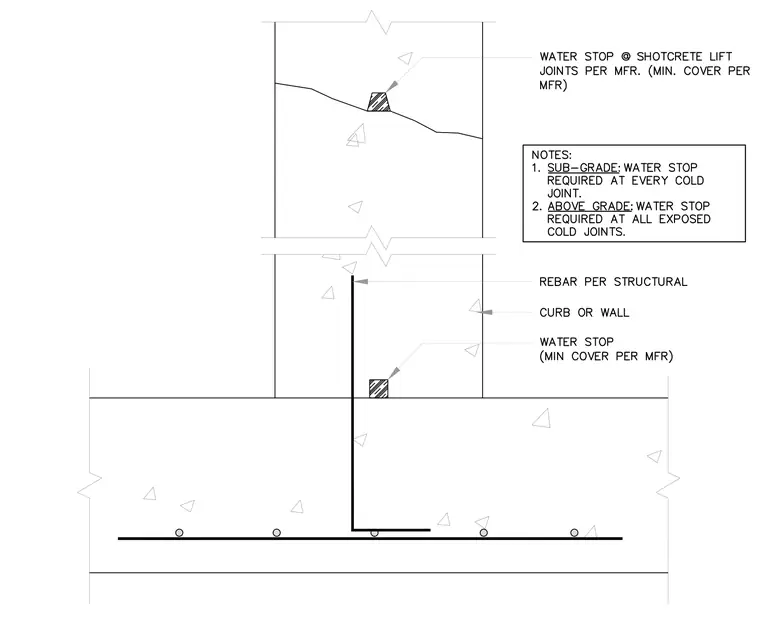

This concrete cold joint detail incorporates waterstops and structural rebar at the intersection of a concrete slab and a vertical curb or wall. A waterstop is positioned with minimum cover per manufacturer requirements at the cold joint. Rebar per structural requirements extends from the slab into the vertical element. Notes specify that waterstops are required at every sub-grade cold joint and at all exposed above-grade cold joints, while shotcrete lift joints require a waterstop per manufacturer guidelines.
