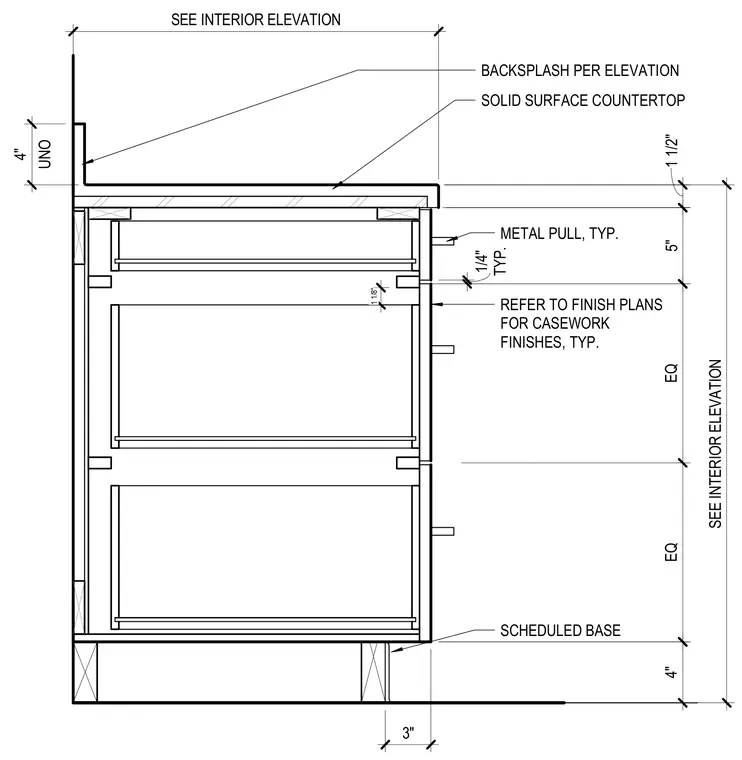

This base cabinet assembly features a solid surface countertop supported by casework framing with a typical four-inch high base. A typical backsplash extends upward at the rear, sized per the interior elevation. Three stacked drawers feature typical metal pulls and equal vertical spacing between drawer fronts. Casework finishes are coordinated per the finish plans.
SEE INTERIOR ELEVATION 1 1/2" METAL PULL, TYP. SEE INTERIOR ELEVATION SOLID SURFACE COUNTERTOP SCHEDULED BASE BACKSPLASH PER ELEVATION 5" 3" TYP. 1/4" UNO 4" 4" EQ EQ REFER TO FINISH PLANS FOR CASEWORK FINISHES, TYP. 1 1/8"
