Architectural · A-TCVQ2

Roof Parapet and Coping Detail with Metal Panel Cladding

Materials

Concrete Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Facades / Cladding Roofs Parapets Floors / Slabs Expansion / Control Joints Waterproofing / Flashing Insulation Millwork / Casework

Connections

Bolted Connection

About this detail

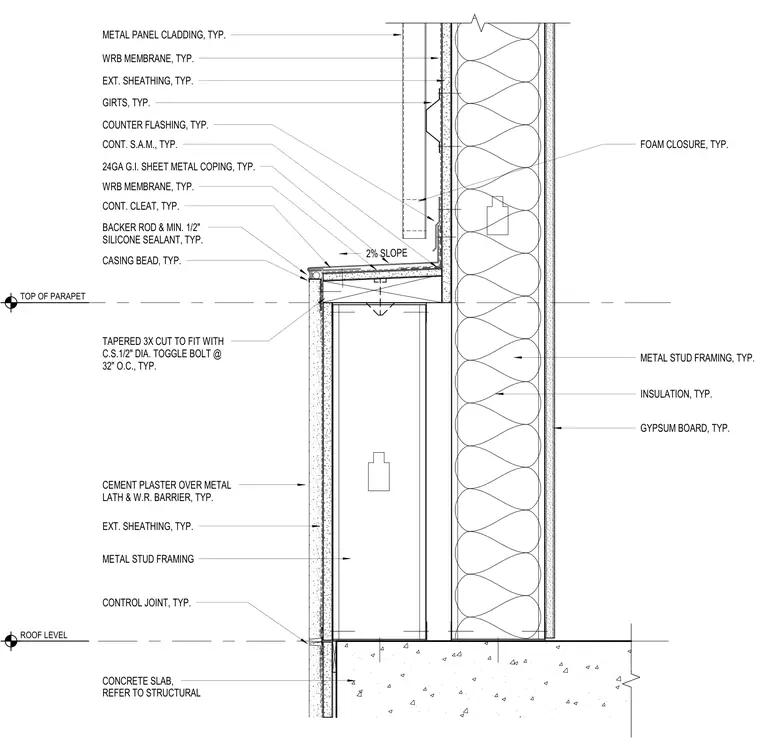

A roof parapet assembly is anchored to a concrete slab and framed with cold-formed steel metal studs. The top of the parapet is capped with twenty-four gauge galvanized iron sheet metal coping secured over a continuous cleat and tapered three-times lumber cut to fit, fastened with one-half inch diameter toggle bolts spaced at thirty-two inches on center. A weather-resistive barrier membrane and continuous self-adhering membrane protect the exterior sheathing beneath the metal panel cladding on the exterior face. The interior features gypsum board over metal stud framing with cavity insulation and a foam closure at the roof level. The exterior wall transitions down to cement plaster over metal lath and a water-resistant barrier, separated by a control joint located just above the concrete slab level.
