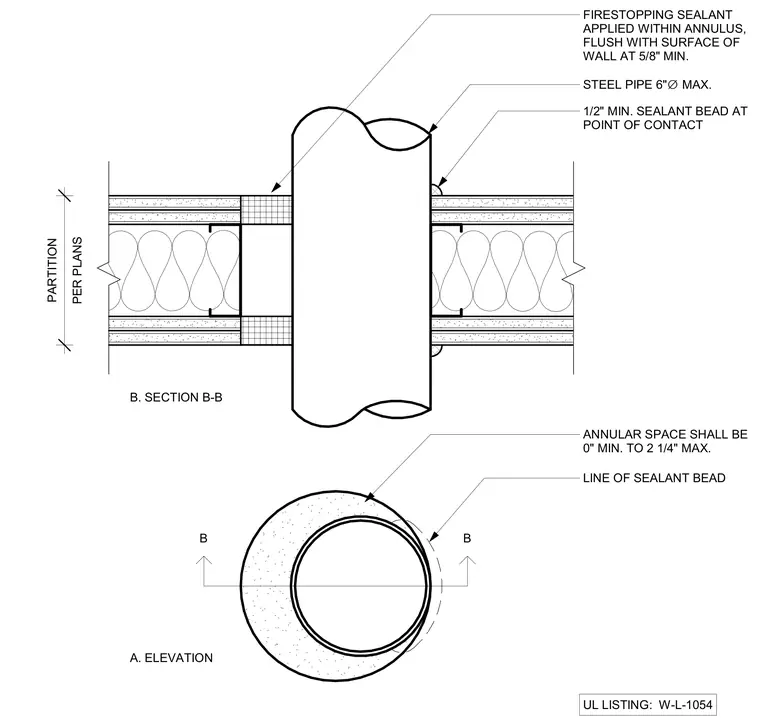

A maximum six-inch diameter steel pipe penetrates a partition wall per plans, maintaining an annular space ranging from zero to two and one-quarter inches. Firestopping sealant is applied within the annulus, flush with the wall surface at a minimum depth of five-eighths of an inch. A minimum one-half-inch sealant bead is placed at the point of contact between the pipe and the wall surface. The assembly complies with Underwriters Laboratories listing W-L-1054.
A. ELEVATION B. SECTION B-B B B STEEL PIPE 6" ∅ MAX. FIRESTOPPING SEALANT APPLIED WITHIN ANNULUS, FLUSH WITH SURFACE OF WALL AT 5/8" MIN. UL LISTING: W-L-1054 1/2" MIN. SEALANT BEAD AT POINT OF CONTACT ANNULAR SPACE SHALL BE 0" MIN. TO 2 1/4" MAX. LINE OF SEALANT BEAD PER PLANS PARTITION
