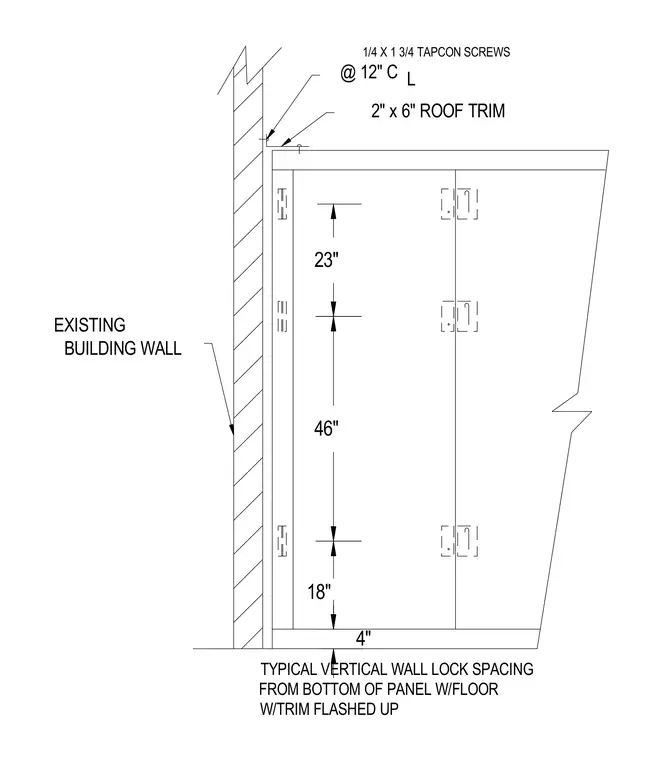

Roof trim consists of a two-inch by six-inch member secured to the existing building wall with quarter-inch by one-and-three-quarter-inch Tapcon screws spaced at twelve inches on center. Vertical wall lock spacing from the bottom of the panel with the floor includes a bottom dimension of four inches, followed upward by eighteen inches, forty-six inches, and twenty-three inches. The perimeter trim is flashed up along the existing wall.
2" x 6" ROOF TRIM EXISTING BUILDING WALL @ 12" C L 1/4 X 1 3/4 TAPCON SCREWS TYPICAL VERTICAL WALL LOCK SPACING FROM BOTTOM OF PANEL W/FLOOR W/TRIM FLASHED UP 46" 4" 18" 23"
