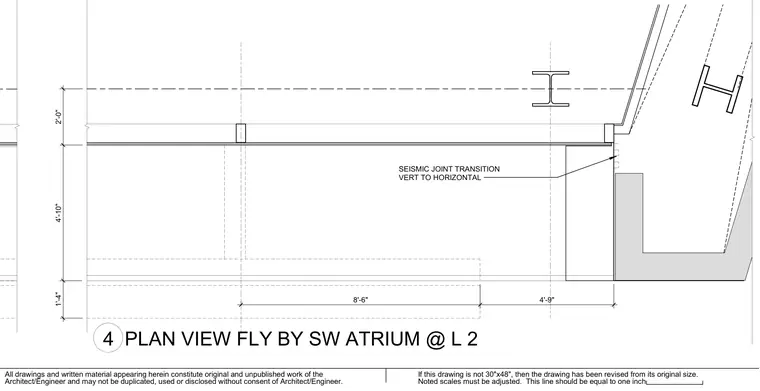

Seismic joint transition from vertical to horizontal at a southwest atrium level two plan. The assembly includes dimensioned layout lines and structural steel framing elements. A specific callout points to the seismic joint transition location.
4 PLAN VIEW FLY BY SW ATRIUM @ L 2 8'-6" 4'-9" 2'-0" 4'-10" 1'-4" SEISMIC JOINT TRANSITION VERT TO HORIZONTAL All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x48", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch
