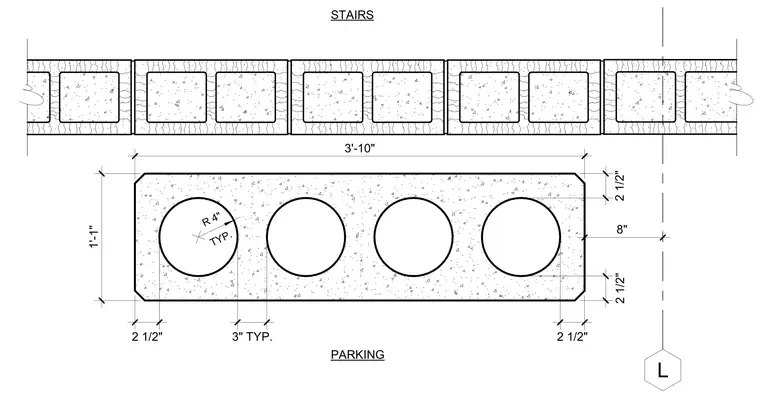

A concrete encasement assembly with four internal circular cores and chamfered corners. The overall member dimensions measure three feet ten inches long by one foot one inch high, with typical spacing dimensions of two and a half inches and three inches between cores. Each circular core has a radius of four inches. Dimension lines indicate edge distances and center-to-center spacing across the concrete profile.
3'-10" 1'-1" 2 1/2" 3" TYP. 2 1/2" 2 1/2" 2 1/2" TYP. R 4" 8" L STAIRS PARKING
