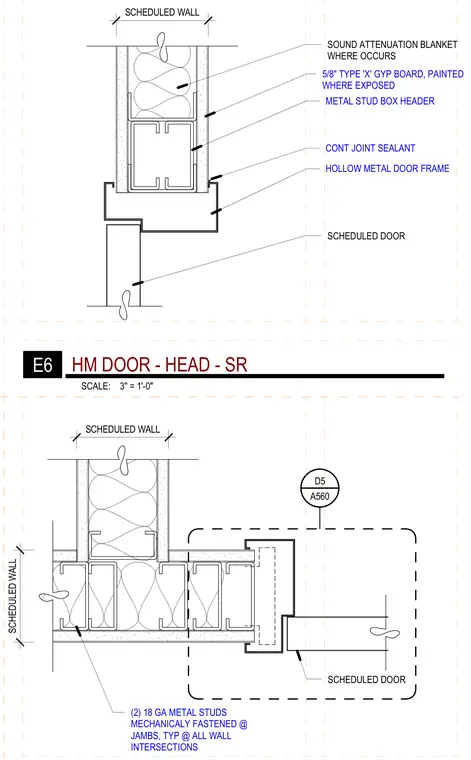

The head detail features a hollow metal door frame set below a metal stud box header framed within a scheduled wall assembly finished with five-eighths-inch Type X gypsum board and continuous joint sealant. Sound attenuation blanket fills the stud cavity where specified. The jamb detail shows a scheduled door fitted into a hollow metal frame adjacent to a wall intersection reinforced with two eighteen-gauge metal studs mechanically fastened together.
SCHEDULED WALL SOUND ATTENUATION BLANKET WHERE OCCURS SCHEDULED DOOR CONT JOINT SEALANT 5/8" TYPE 'X' GYP BOARD, PAINTED WHERE EXPOSED METAL STUD BOX HEADER HOLLOW METAL DOOR FRAME SCHEDULED WALL SCHEDULED WALL SCHEDULED DOOR (2) 18 GA METAL STUDS MECHANICALY FASTENED @ JAMBS, TYP @ ALL WALL INTERSECTIONS A560 D5 SCALE: 3" = 1'-0" E6 HM DOOR - HEAD - SR
