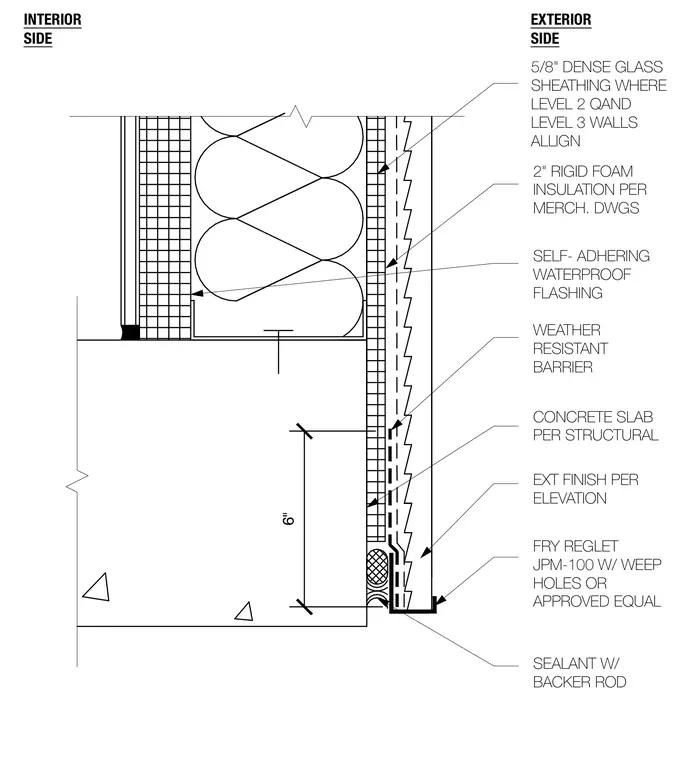

This wall assembly terminates at a concrete slab edge with an exterior stucco finish over a weather-resistant barrier and two inches of rigid foam insulation. A Fry Reglet JPM-100 with weep holes or approved equal provides the stucco stop at the underside of the concrete slab. Self-adhering waterproof flashing and a weather-resistant barrier protect the exterior sheathing. The interior side incorporates 5/8-inch dense glass sheathing where level two and level three walls align.
EXTERIOR SIDE 5/8" DENSE GLASS SHEATHING WHERE LEVEL 2 QAND LEVEL 3 WALLS ALLIGN 2" RIGID FOAM INSULATION PER MERCH. DWGS INTERIOR SIDE SELF- ADHERING WATERPROOF FLASHING WEATHER RESISTANT BARRIER CONCRETE SLAB PER STRUCTURAL EXT FINISH PER ELEVATION FRY REGLET JPM-100 W/ WEEP HOLES OR APPROVED EQUAL SEALANT W/ BACKER ROD
